Cards are material panel with slightly round corners. The cards make simple
apps looks good and easy to use interface. Many apps you come daily across use
here and their cards. And with the Flutter framework, we can easily make
beautiful cards with absolutely no other dependencies. We will also cover
cards in a list in this tutorial.
Contents
- Project setup
- Code
- Design
- Result
Project Setup
It would be recommended to create a new project and follow this tutorial and
later implement it in your own project. But you can also use your own
project.
So use your own project or create a new project in Android Studio or Visual
Studio Code and name it list_cards or you can use Command Prompt / Terminal to
create a new project.
flutter create list_card
Code
Create a new file under the lib folder to keep our code separate and name it
list_cards_screen.dart.
After that make a stateful class in the file and name it simply
ListCardsScreen.
import 'package:flutter/material.dart'; class ListCardsScreen extends StatefulWidget { const ListCardsScreen({Key? key}) : super(key: key); @override _ListCardsScreenState createState() => _ListCardsScreenState(); } class _ListCardsScreenState extends State<ListCardsScreen> { @override Widget build(BuildContext context) { return Container(); } }
In the return statement replace the Container widget with the Scaffold widget.
Add appbar and body to the Scaffold widget and give some title(e.g.- 'Cards
List') to your appbar. In the body of the Scaffold widget, we will use a
ListView and we will Card as children of ListView. Your code should look as
shown below.
appBar: AppBar(
title: Text('Cards List'),
),
body: ListView(
children: [],
),
Now let us make two Card widget. But before that, we will discuss the fields
in the Card widget and what we are going to use here.
- color: Here colour of background the Card widget is given.
- child: Here we are going to specify what to place inside our Card widget. For our tutorial, I am going to use an image and a text heading.
- shadowColor: Here colour of the shadow of the Card widget is given.
- elevation: It takes a double value and simply specifies the length of the shadow. Its default value is 1.0.
- shape: Here the shape of the border is given, whether you want a rounded or sharp corner for your Card widget. It takes the ShapeBorder type of value.
- borderOnForeground: It takes bool value and specifies whether to display border above or below the child widget. The default value is true.
- margin: This field asks how much margin to provide and accepts EdgeInsets type value. Its default value is EdgeInsets.all(4.0).
- clipBehaviour: Asks whether you want to clip your contents or not. The default value is true.
Let's start making our app.
We will use a Column in the child field of Card. Here we will use an Image
widget and a Text widget.
Card(child: Column(children: [Image.network(src),Text(title),],),)
Here is the data we are using now.
String src = 'https://cdn.pixabay.com/photo/2021/06/01/07/03/sparrow-6300790_960_720.jpg'; String title = 'Sparrow'; //https://pixabay.com/users/schauhi-2509795/
Copy and paste above the Widget build function.
In the main.dart file, replace the home field with ListCardsScreen
MaterialApp(
title: 'List Cards Screen',
theme: ThemeData(
primarySwatch: Colors.blue,
),
home: ListCardsScreen(),
);
Now run the app and see. It should look as shown below.
Design
Now this apps works but we need to add some more data and design a better
card. So lets make a new Card widget function separate from the
ListCardsScreen class and and we will return Card widget.
This function will accept the image link and title of the image. Now your
Card code should look like below.
Widget card(String image, String title) { return Card(); }
We will give the card a background color of light yellow and also give image
padding and image ratio of 3:4. We will give title bold font with bigger
font size. So its your choice completely how you want to design your card.
Also I am going to give the card a more rounded corner.
Widget card(String image, String title, BuildContext context) { return Card( color: Colors.yellow[50], elevation: 8.0, margin: EdgeInsets.all(4.0), shape: RoundedRectangleBorder(borderRadius: BorderRadius.circular(15)), child: Column( children: [ Padding( padding: EdgeInsets.all(16.0), child: Image.network( image, height: MediaQuery.of(context).size.width * (3 / 4), width: MediaQuery.of(context).size.width, ), ), Text( title, style: TextStyle( fontSize: 38.0, fontWeight: FontWeight.w700, ), ), ], ), ); }
Now in we are going to replace the ListView with ListView.builder. But
before that, I have provided some data here which is needed for ListView of
our app. So copy that from below.
List<String> image = [ 'https://cdn.pixabay.com/photo/2021/06/01/07/03/sparrow-6300790_960_720.jpg', 'https://cdn.pixabay.com/photo/2017/10/20/10/58/elephant-2870777_960_720.jpg', 'https://cdn.pixabay.com/photo/2014/09/08/17/32/humming-bird-439364_960_720.jpg', 'https://cdn.pixabay.com/photo/2018/05/03/22/34/lion-3372720_960_720.jpg']; List<String> title = ['Sparrow', 'Elephant', 'Humming Bird', 'Lion'];
Now come to the ListView part of the code and rename the ListView to
ListView.builder.
body: ListView.builder(),
Now one required argument in this widget is itemBuilder which will build our
card views. So add it to your ListView as shown.
ListView.builder(
itemBuilder: (BuildContext context, int index) { },
),
Now in the curly braces, we have to return any widget and for this tutorial, we will return the custom card widget we made.
itemBuilder: (BuildContext context, int index) { return card(image[index], title[index], context); },
We will also require the itemCount field in our ListView.builder so add it
and we will provide the length of the data lists we are using(image list and
title list). So our whole ListView.builder should look as follows.
ListView.builder( itemCount: image.length, itemBuilder: (BuildContext context, int index) { return card(image[index], title[index], context); }, ),

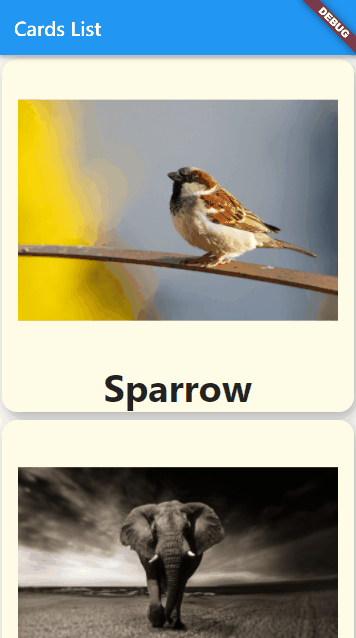

Now run the app again and see the result.
Result
So we have successfully made an app with cards and ListView and by following this tutorial you can make many wonderful apps. Thank you for following this tutorial and if you have any doubts comment below or you can contact me from contact form.
